At the dawn of the seventies, as popular music trended towards the fatter tones of humbucking pickups into overdriven amps, Fender hired legendary humbucking pickup designer Seth Lover to create a distinctly Fender-flavored take on a higher output dual-coil pickup. The resulting Wide Range pickup used large bobbins and threaded CuNiFe rod magnets to achieve its unique and brilliant sound. The Telecaster® Custom was discontinued in 1979 and real CuNiFe-magnet pickups disappeared with them.

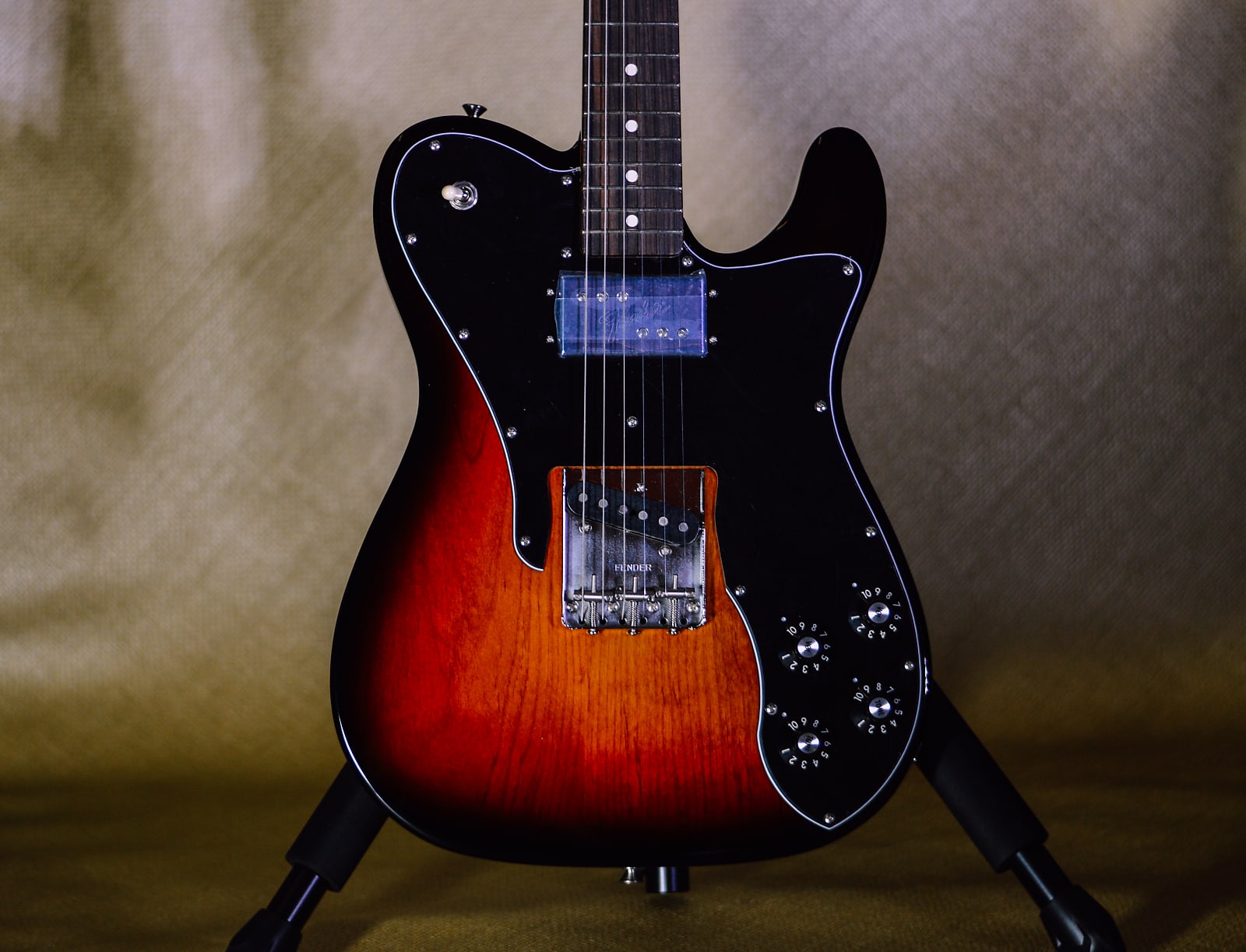

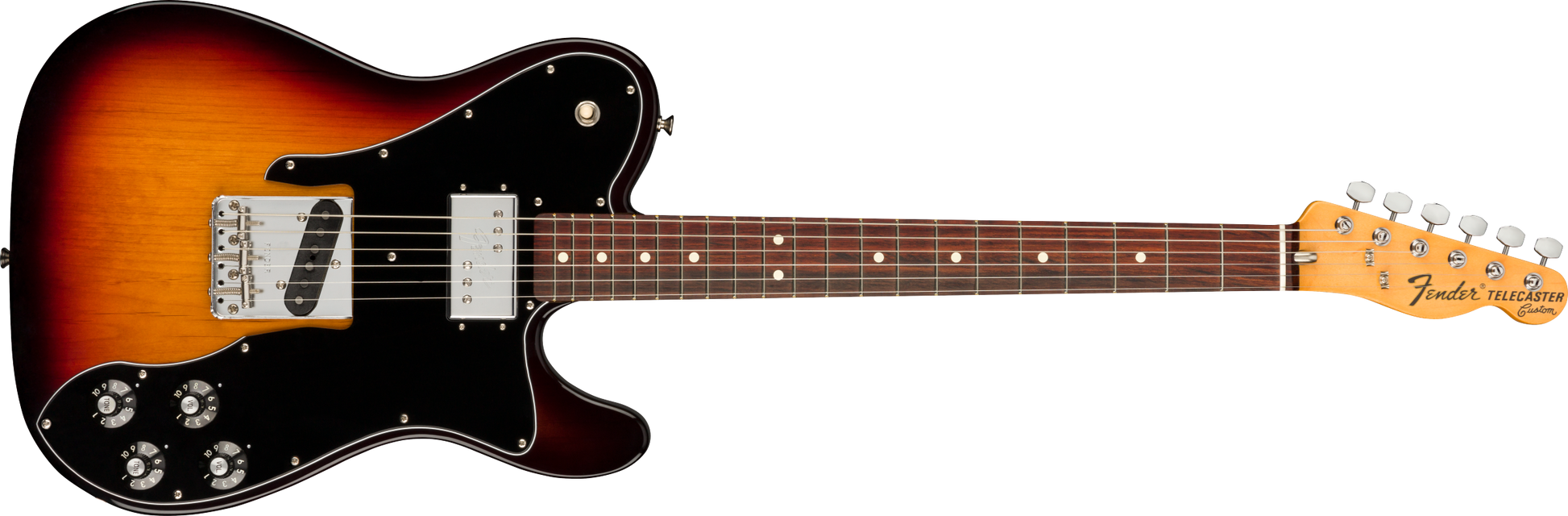

The American Original ‘70s Telecaster Custom features the first authentic CuNiFe magnet powered Wide Range neck pickup in over 40 years, complimented by a calibrated Tim-Shaw-designed ‘70s Telecaster single-coil bridge pickup. Controls include individual volume and tone for each pickup and an upper-bout 3-way toggle switch. Other touches include original-era body radii, vintage-style hardware - including F logo tuners and bullet truss rod adjust and a lacquer finish that lets the wood breathe naturally with resonant tone. A vintage-style hardshell case is included.
Body
- Body Material: Alder
- Body Finish: Gloss Nitrocellulose Lacquer
- Body Shape: Telecaster
Neck
- Neck Material: Maple
- Neck Finish: Gloss Nitrocellulose Lacquer
- Fingerboard Material: Rosewood
- Fingerboard Radius: 9.5" (241 mm)
- Scale Length: 25.5" (648 mm)
- Number of Frets: 21
- Fret Size: Vintage Tall

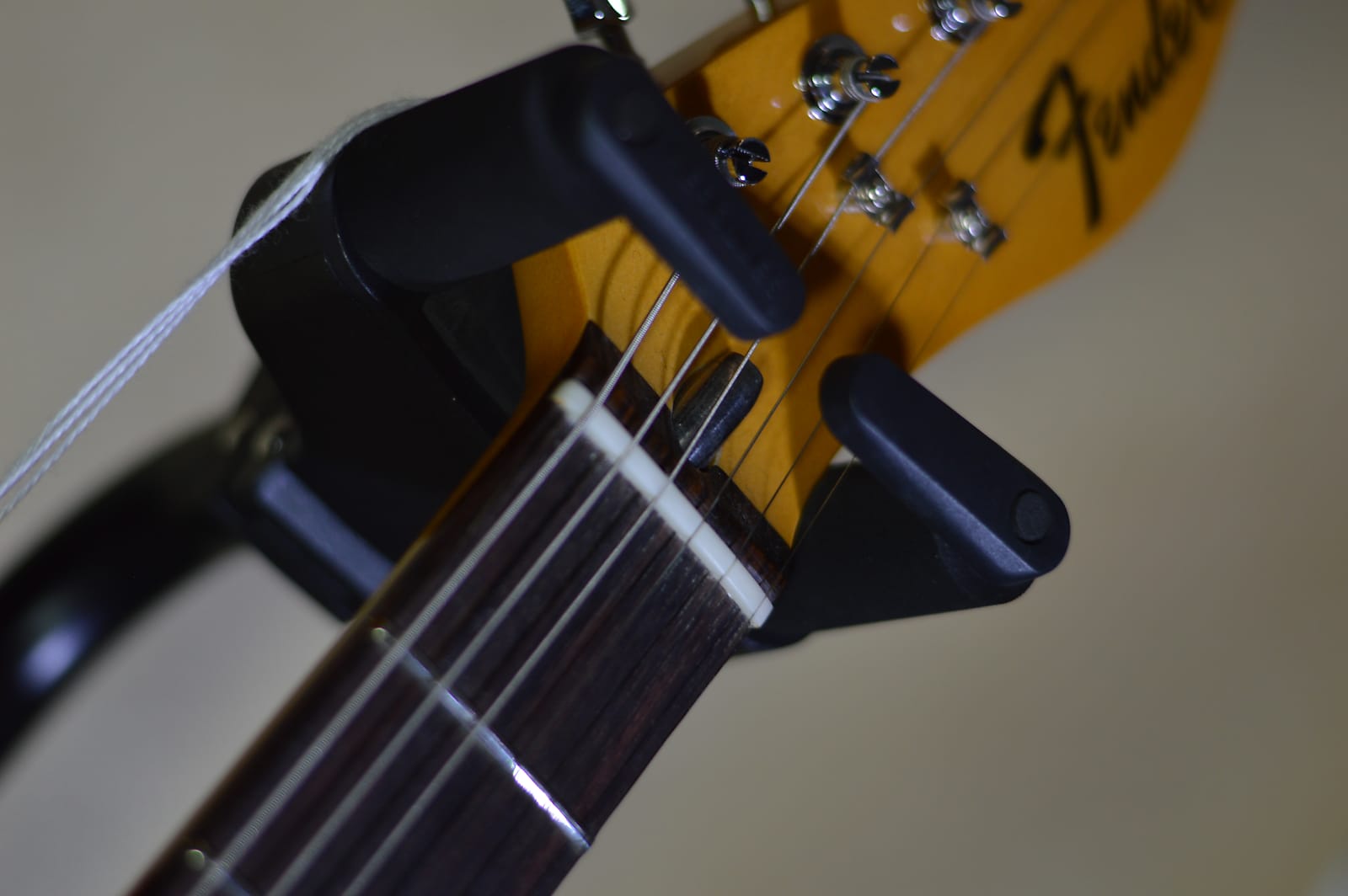

- Nut Material: Bone
- Nut Width: 1.650" (42mm)
- Position Inlays: White Dot
- Truss Rod: Bullet Style
Electronics

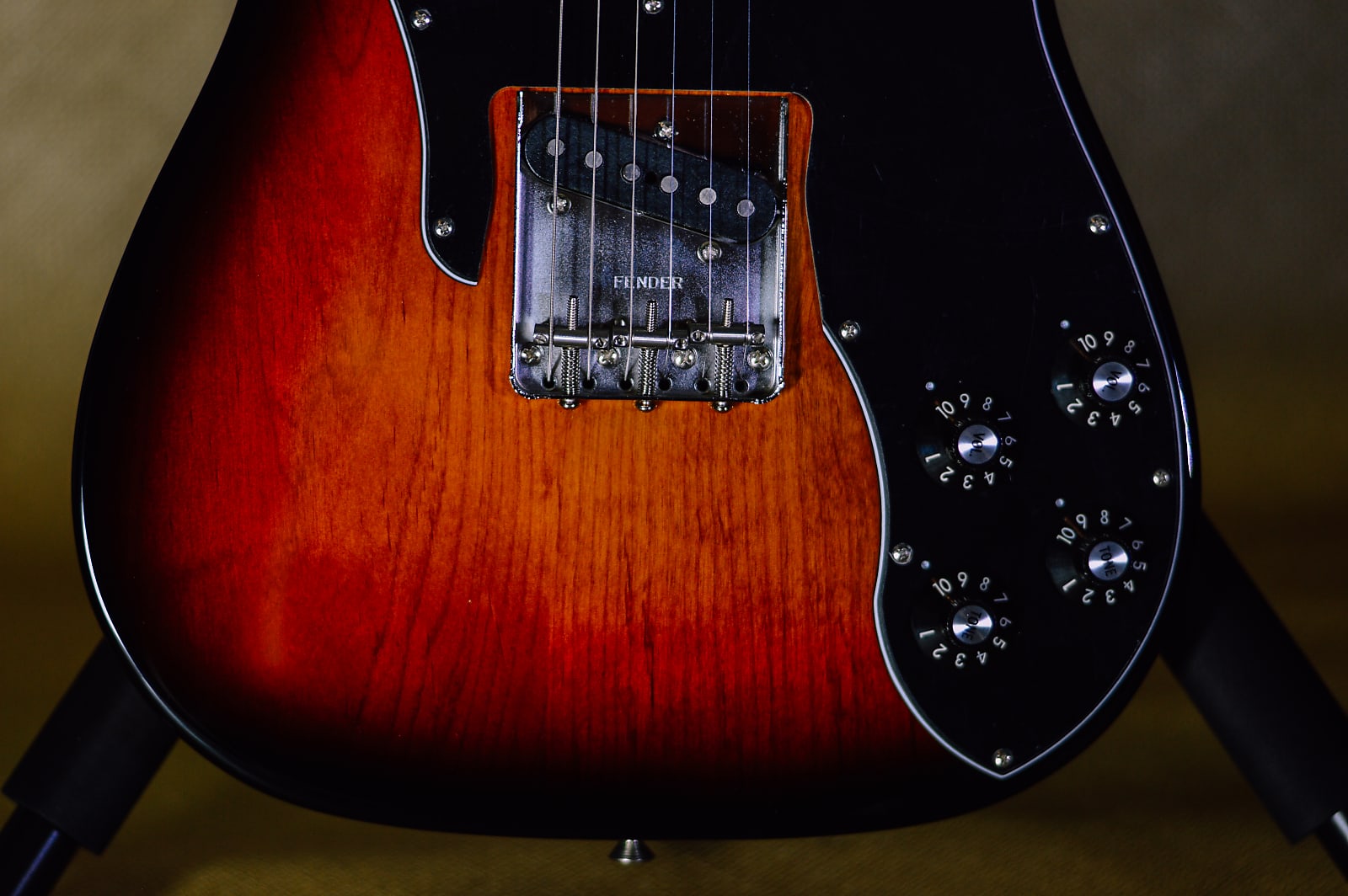

- Bridge Pickup: Vintage-Style '70s Single-Coil Tele Bridge Pickup

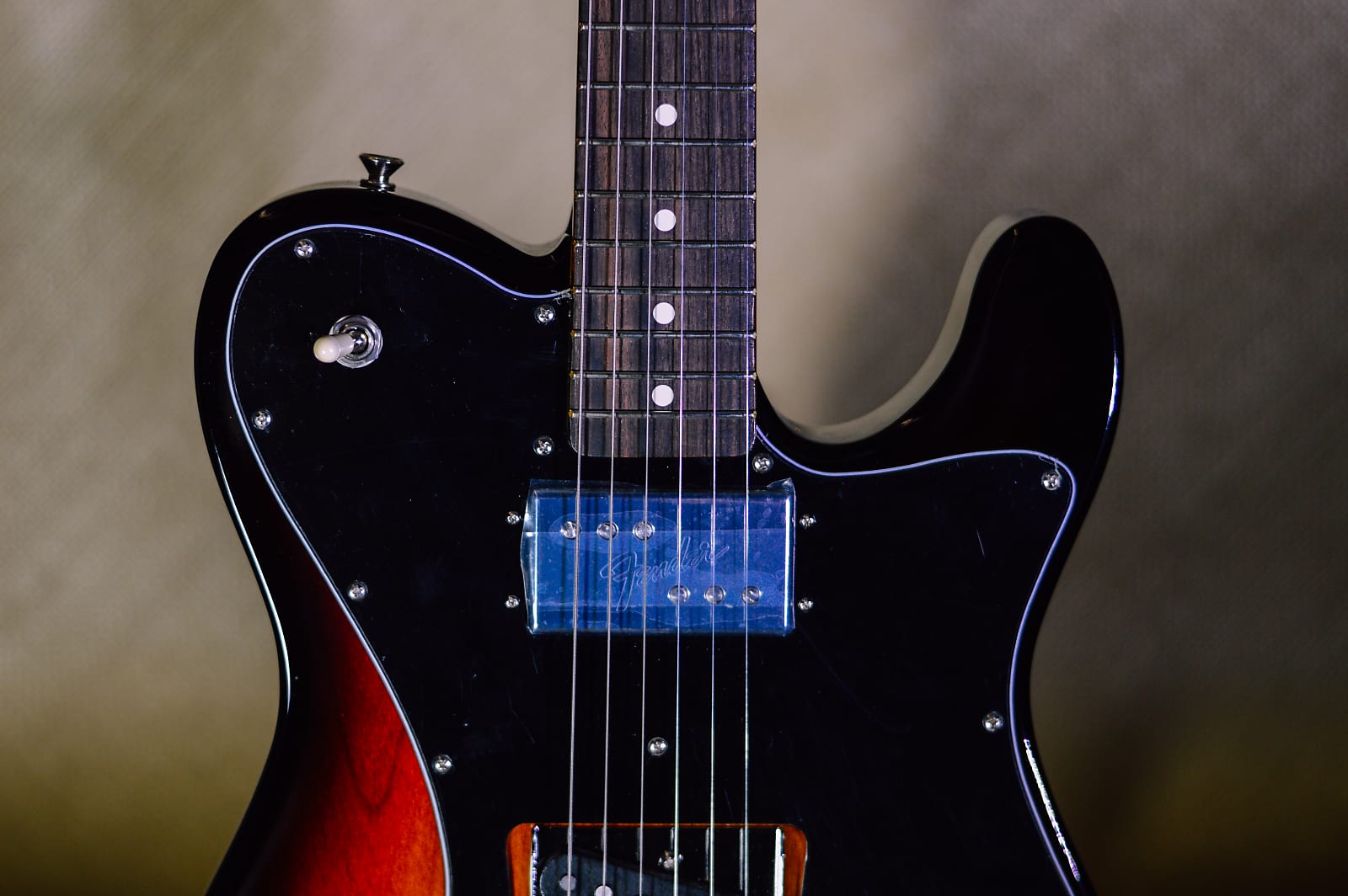

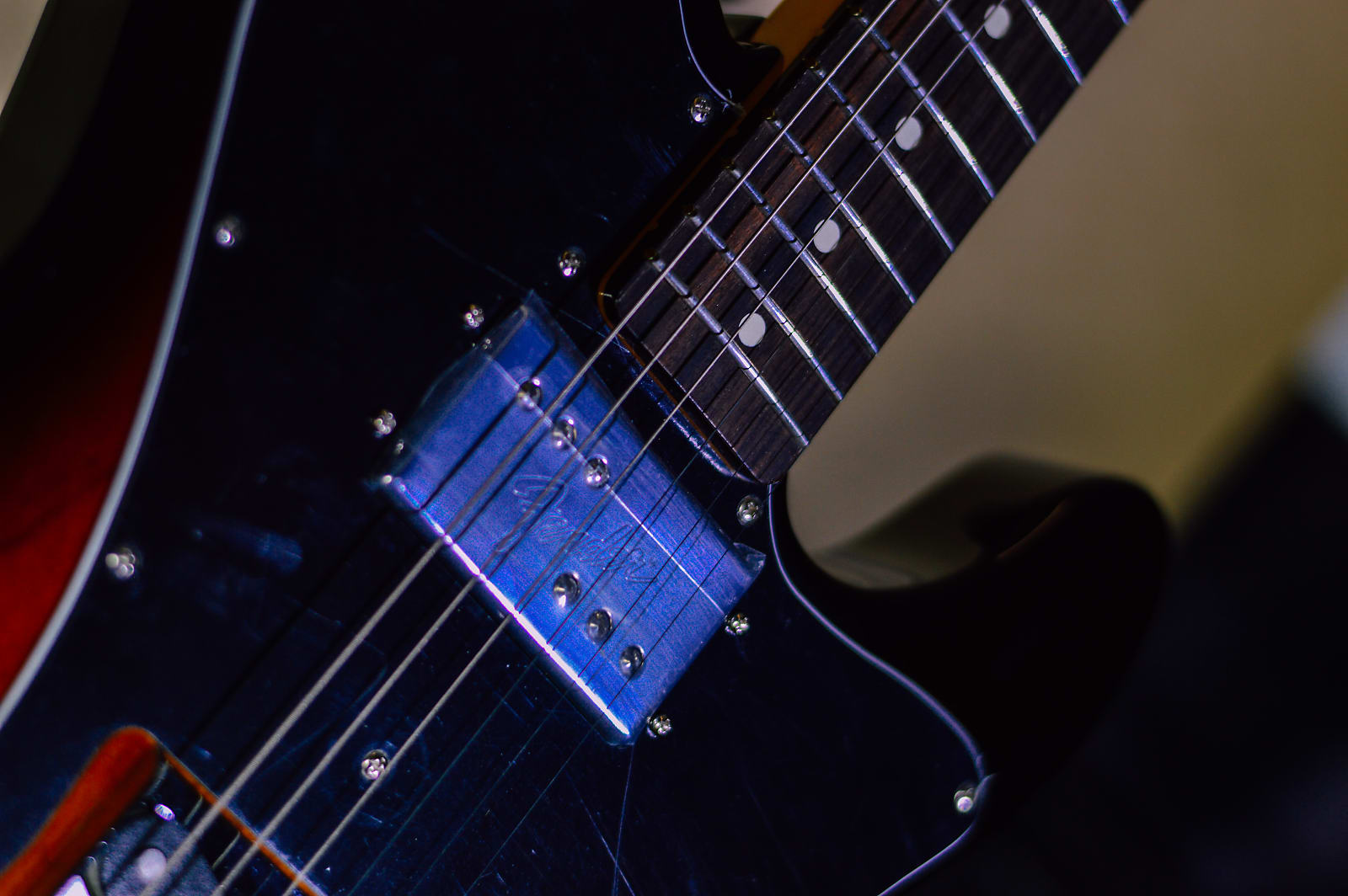

- Neck Pickup: Tim Shaw Authentic CuNiFe Wide-Range Humbucking Neck Pickup
- Controls: Volume 1. (Bridge Pickup), Volume 2. (Neck Pickup), Tone 1. (Bridge Pickup), Tone 2. (Neck Pickup)
- Switching: 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup
- Configuration: HS
Hardware
- Bridge: 3-Saddle Vintage-Style Strings-Through-Body Tele with Slotted Steel Saddles
- Hardware Finish: Nickel/Chrome

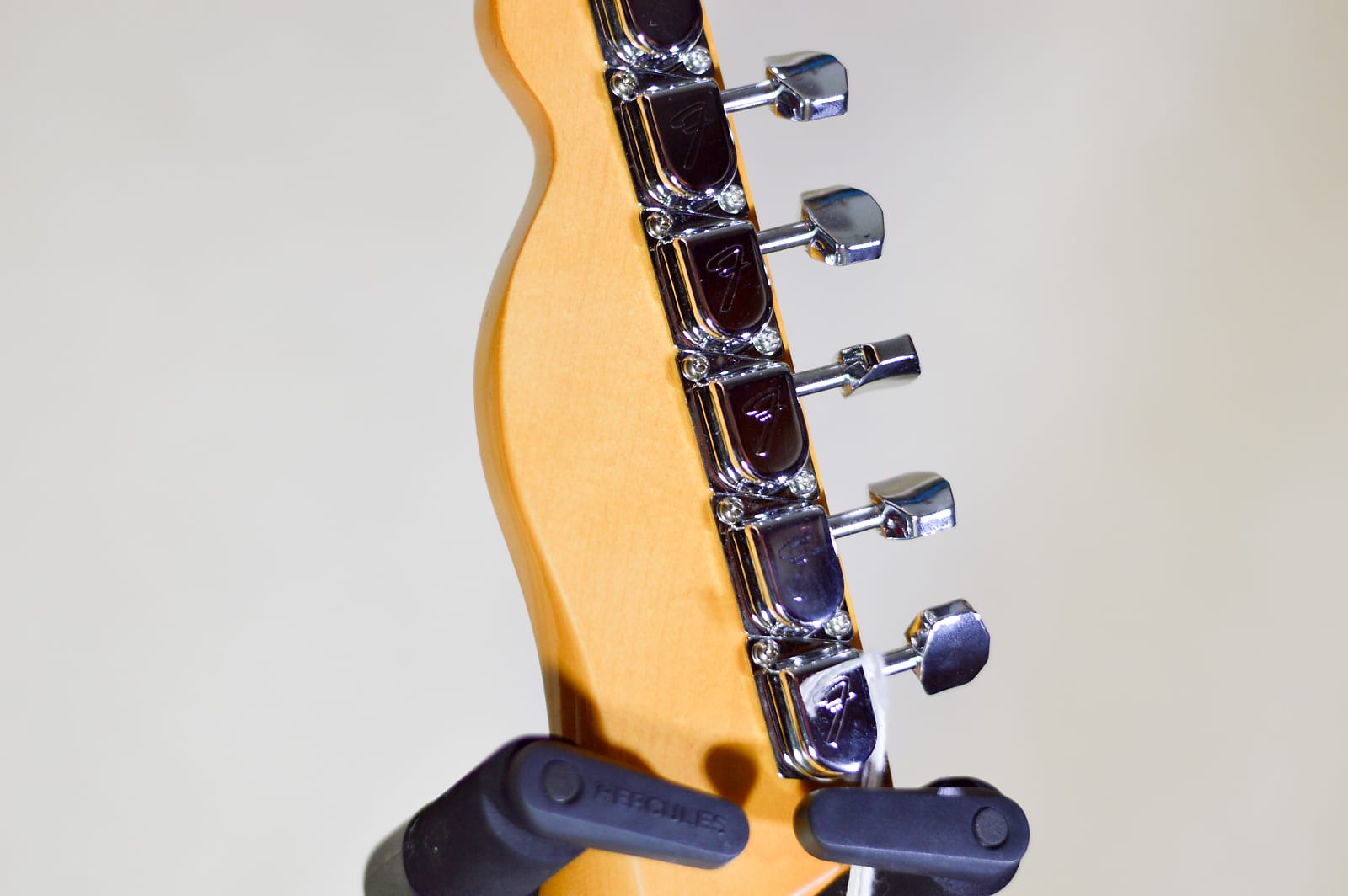

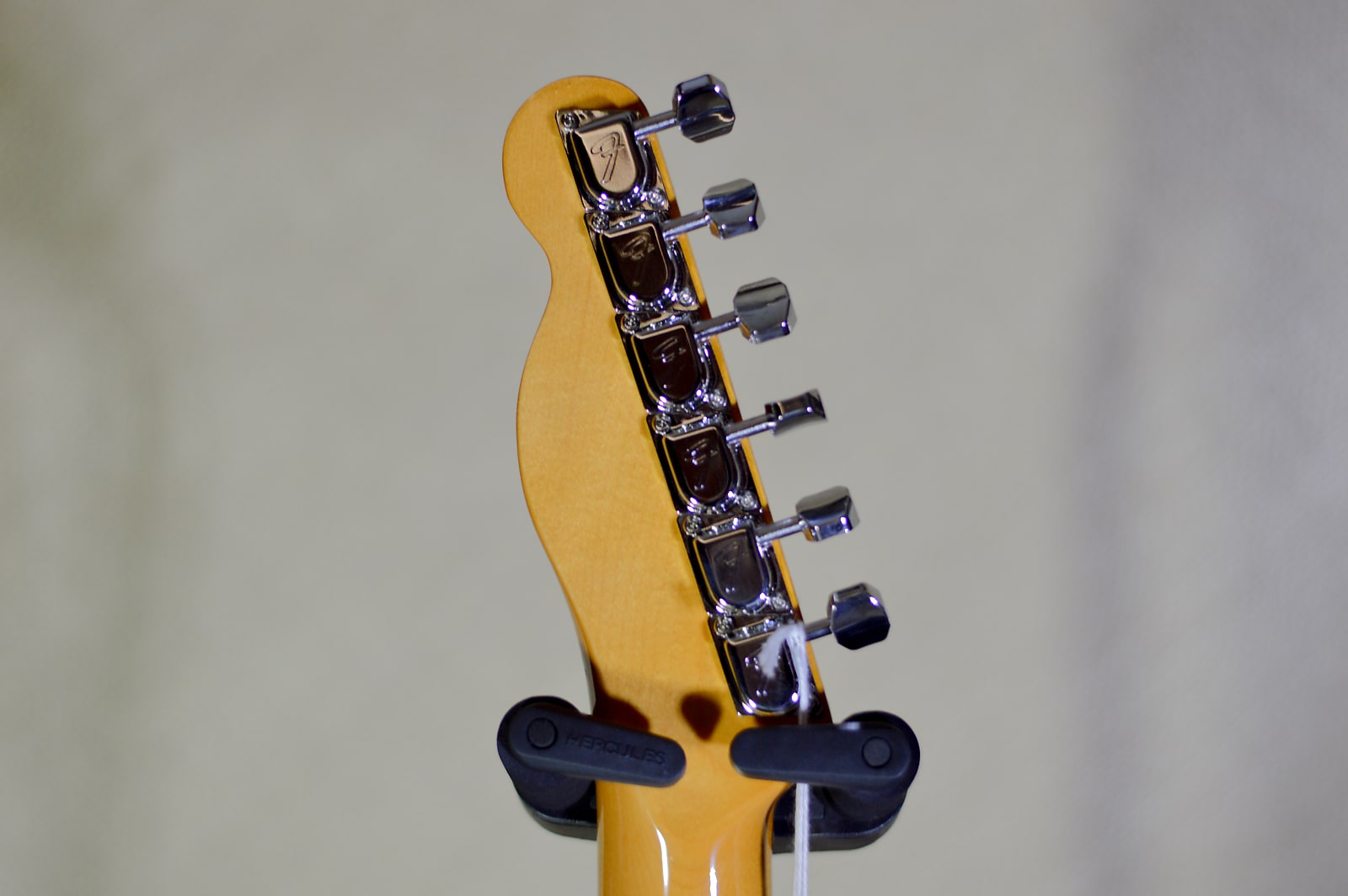

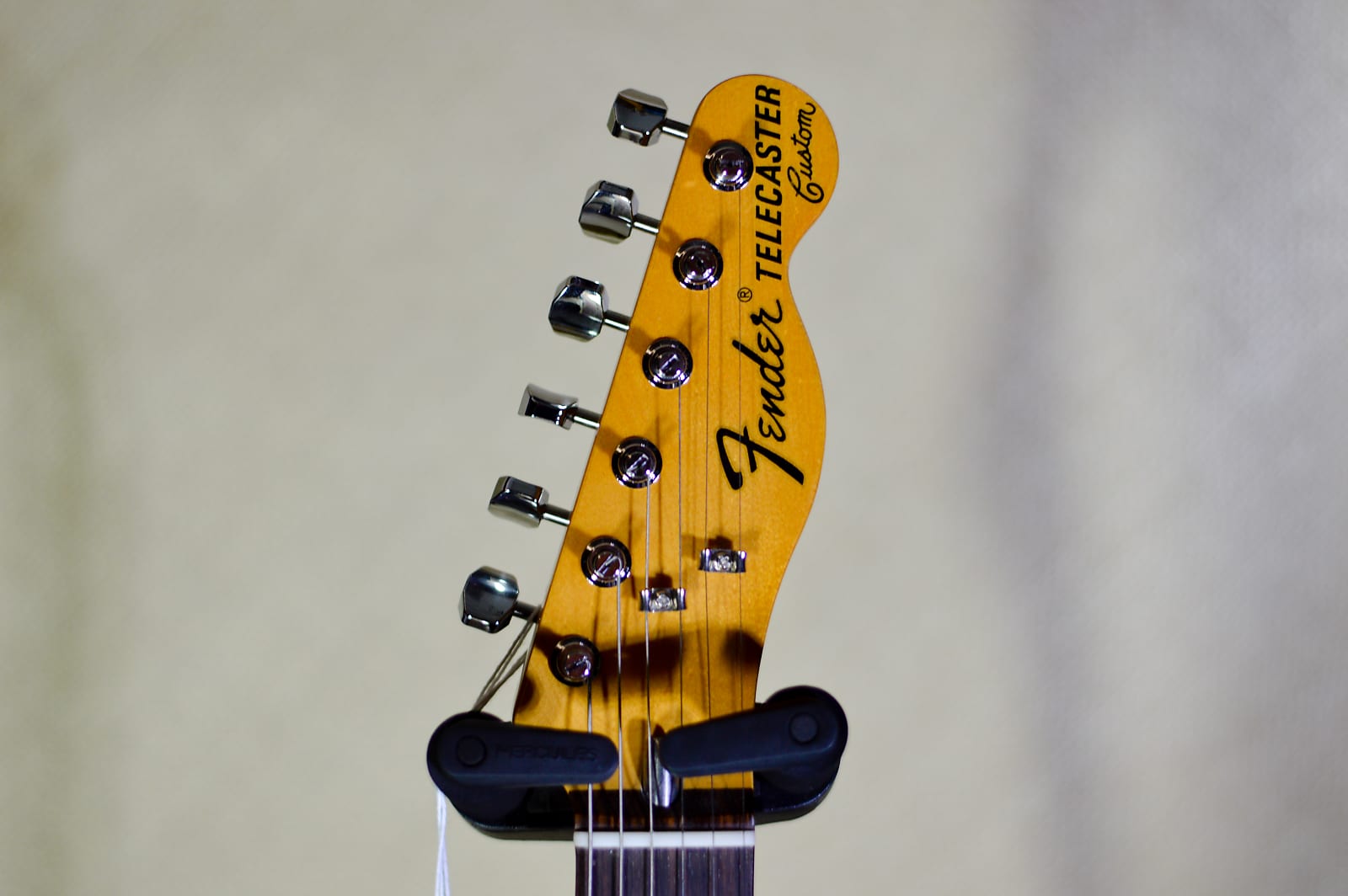

- Tuning Machines: Fender Vintage "F" Stamped
- Pickguard: 3-Ply Black/White/Black
- Control Knobs: Skirted Black Plastic with Numbered Indicators

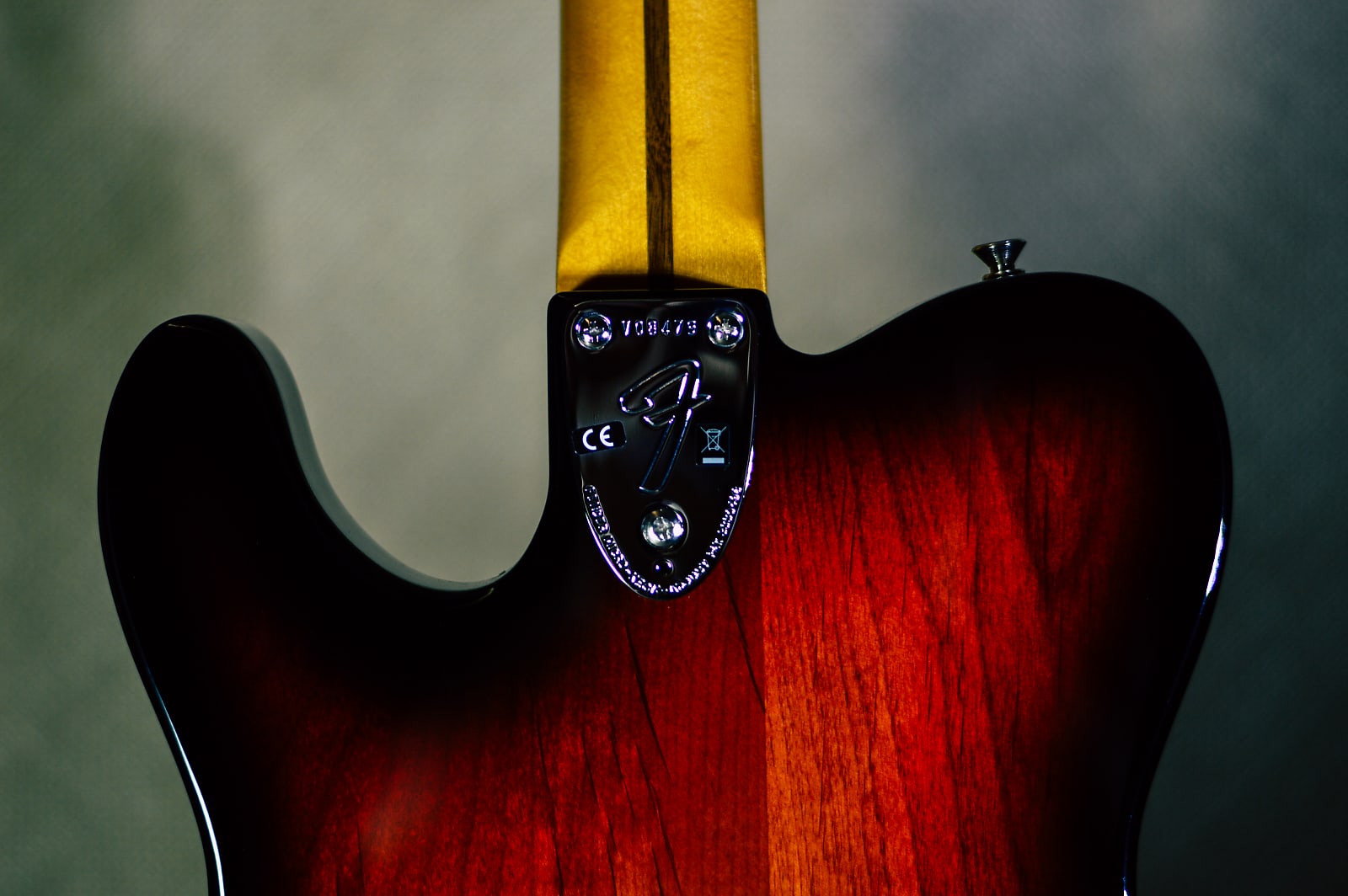

- Neck Plate: 3-Bolt
- Neck Mounting: 3-Bolt
Miscellaneous/Accessories
- Case/Gig Bag: A vintage-style hardshell case
- Strings: Fender USA 250R NPS, (.010 - .046 Gauges)
